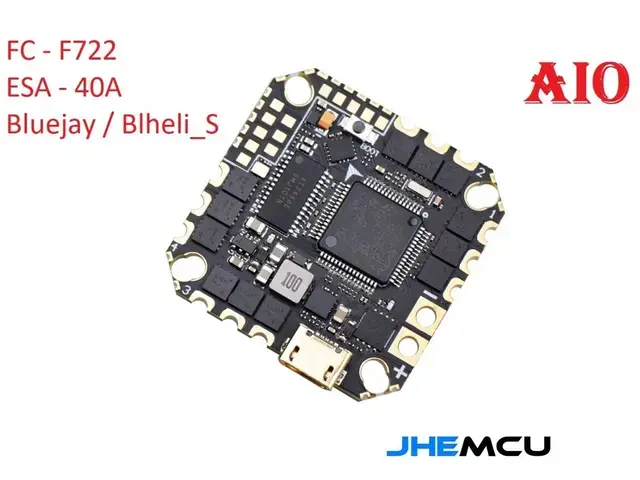

Specifications
Flight Controller
• Specifications:
• Brand Name: JHEMCU
• Model: GHF722AIO-HD
• MCU: STM32F722/216MHz
• MIU: ICM-42688-P / Gyro / Accel
• OSD: AT7456E
• Baro: YES
• Blackbox: 8MB
• Input Voltage: 2-6S Lipo(7.4-26V)
• 5V BEC: 5V/2.5A ±0.1V
• 10V BEC: NO
• Receiver: ELRS(CRSF),TBS(CRSF),SBUS,IBUS,DSM2,DSMX
• IIC: NO
• USART: USART1/USART2/USART3/USART4/USART5/USART6
• LED Strip: Support
• Buzzer: Support 5V Active
• USER1 model: Support,with PINIO pad output
• Current Port: YES
• ESC Signal: PWM, Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300, Dshot600
• Voltage sensor: YES
• DFU button: YES
• USB: Micro USB
• Firmware: Betaflight -4.3.0 JHEF7DUAL.HEX
• Size: 33*33mm
• Mounting holes: 25.5-26.5*3mm
• Weight: 7.6g
• ESC Current: 40A(MAX 45A)
• MCU: EFM8BB21F16G
• Type: Bluejay / BLHELI-S
• ESC Firmware: Bluejay G-H-30-48-v0.16.hex
• Whether to support 48K/96K firmware: Support
Includes
• GHF722AIO-HD x1
• XT60-H x1
• M2x6.5mm Anti-vibration Ball x4
• TVS board x1
• 14AWG Power Cable x2
• 1000UF/35V Electrolytic capacitor x1
